Flowable BPMN 用户手册 (v 6.7.2.event-SNAPSHOT)

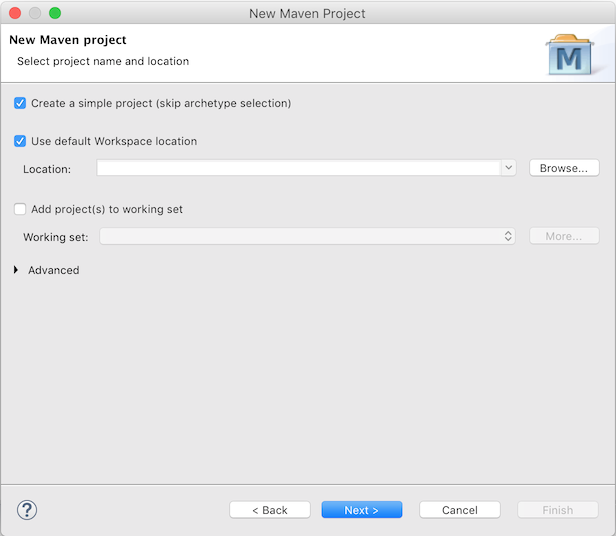

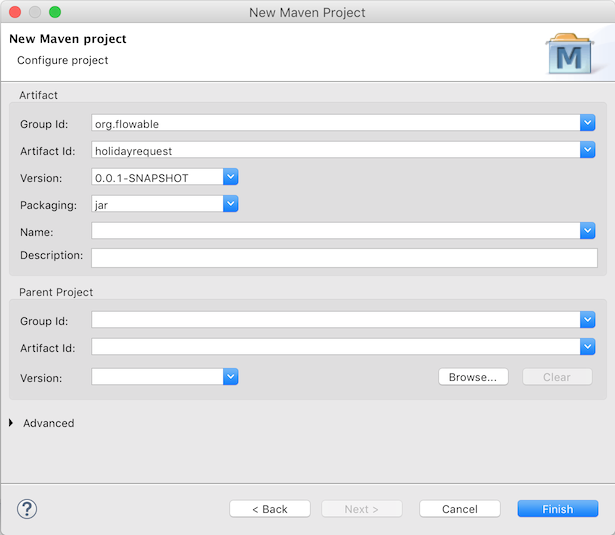

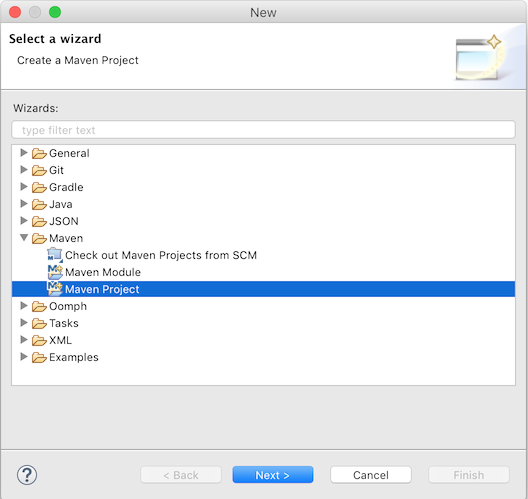

<dependencies>
  <dependency>
    <groupId>org.flowable</groupId>
    <artifactId>flowable-engine</artifactId>
    <version>6.7.2.event-SNAPSHOT</version>
  </dependency>
  <dependency>
    <groupId>com.h2database</groupId>
    <artifactId>h2</artifactId>
    <version>1.3.176</version>
  </dependency>
</dependencies>

package org.flowable;

public class HolidayRequest {

  public static void main(String[] args) {

  }

}

package org.flowable;

import org.flowable.engine.ProcessEngine;
import org.flowable.engine.ProcessEngineConfiguration;
import org.flowable.engine.impl.cfg.StandaloneProcessEngineConfiguration;

public class HolidayRequest {

  public static void main(String[] args) {
    ProcessEngineConfiguration cfg = new StandaloneProcessEngineConfiguration()
      .setJdbcUrl("jdbc:h2:mem:flowable;DB_CLOSE_DELAY=-1")
      .setJdbcUsername("sa")
      .setJdbcPassword("")
      .setJdbcDriver("org.h2.Driver")
      .setDatabaseSchemaUpdate(ProcessEngineConfiguration.DB_SCHEMA_UPDATE_TRUE);

    ProcessEngine processEngine = cfg.buildProcessEngine();
  }

}

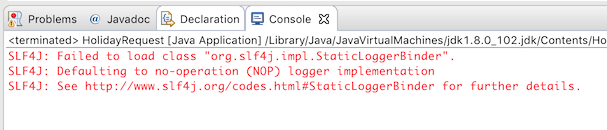

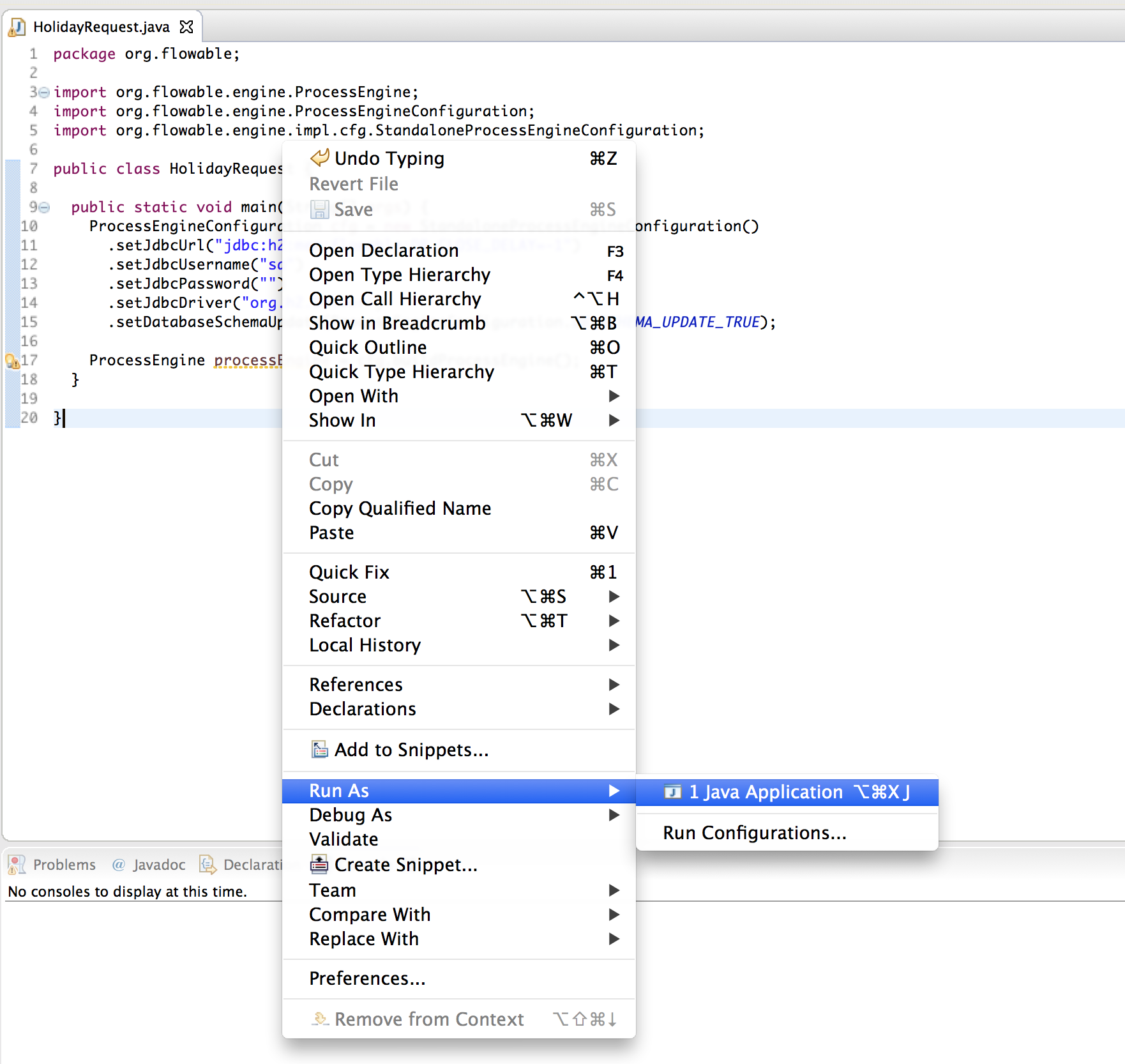

<dependency>
  <groupId>org.slf4j</groupId>
  <artifactId>slf4j-api</artifactId>
  <version>1.7.21</version>
</dependency>
<dependency>
  <groupId>org.slf4j</groupId>
  <artifactId>slf4j-log4j12</artifactId>
  <version>1.7.21</version>
</dependency>

log4j.rootLogger=DEBUG, CA

log4j.appender.CA=org.apache.log4j.ConsoleAppender
log4j.appender.CA.layout=org.apache.log4j.PatternLayout
log4j.appender.CA.layout.ConversionPattern= %d{hh:mm:ss,SSS} [%t] %-5p %c %x - %m%n

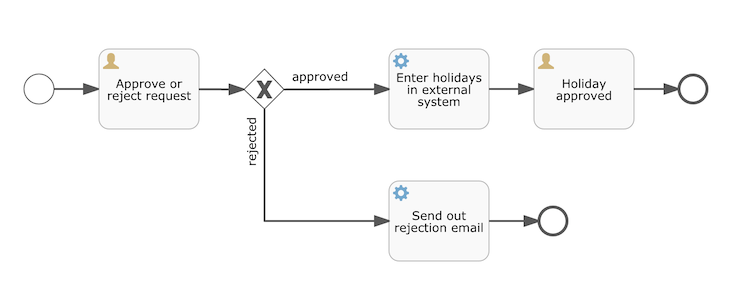

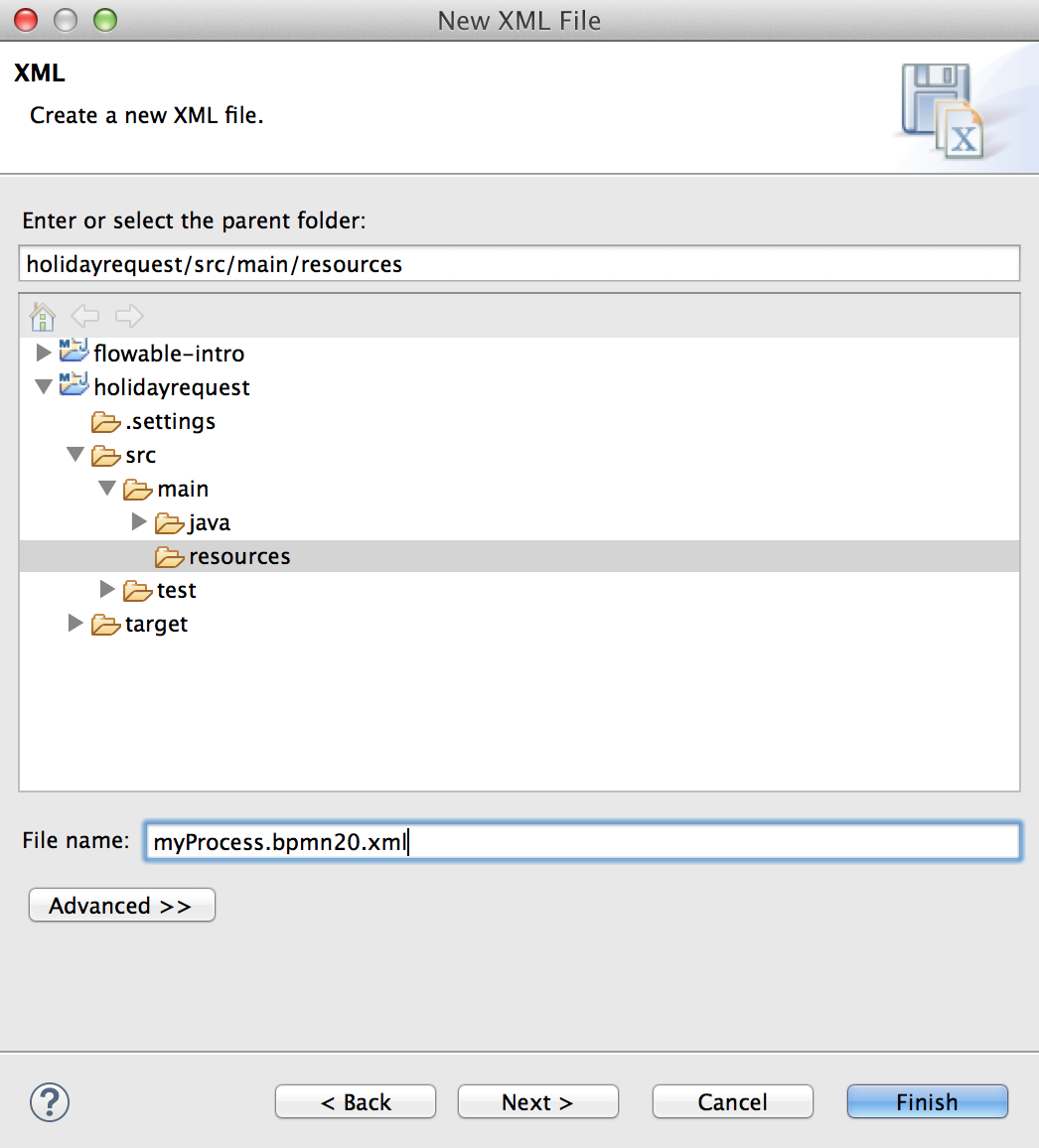

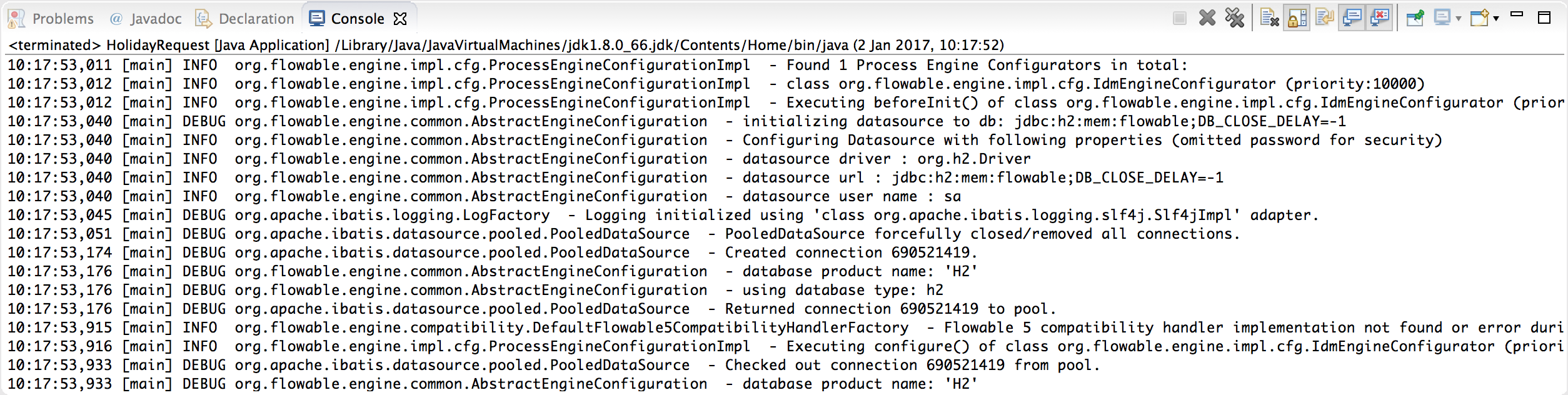

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xmlns:xsd="http://www.w3.org/2001/XMLSchema"
  xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
  xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"
  xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"
  xmlns:flowable="http://flowable.org/bpmn"
  typeLanguage="http://www.w3.org/2001/XMLSchema"
  expressionLanguage="http://www.w3.org/1999/XPath"
  targetNamespace="http://www.flowable.org/processdef">

  <process id="holidayRequest" name="Holiday Request" isExecutable="true">

    <startEvent id="startEvent"/>
    <sequenceFlow sourceRef="startEvent" targetRef="approveTask"/>

    <userTask id="approveTask" name="Approve or reject request"/>
    <sequenceFlow sourceRef="approveTask" targetRef="decision"/>

    <exclusiveGateway id="decision"/>
    <sequenceFlow sourceRef="decision" targetRef="externalSystemCall">
      <conditionExpression xsi:type="tFormalExpression">
        <![CDATA[
          ${approved}
        ]]>
      </conditionExpression>
    </sequenceFlow>
    <sequenceFlow  sourceRef="decision" targetRef="sendRejectionMail">
      <conditionExpression xsi:type="tFormalExpression">
        <![CDATA[
          ${!approved}
        ]]>
      </conditionExpression>
    </sequenceFlow>

    <serviceTask id="externalSystemCall" name="Enter holidays in external system"
        flowable:class="org.flowable.CallExternalSystemDelegate"/>
    <sequenceFlow sourceRef="externalSystemCall" targetRef="holidayApprovedTask"/>

    <userTask id="holidayApprovedTask" name="Holiday approved"/>
    <sequenceFlow sourceRef="holidayApprovedTask" targetRef="approveEnd"/>

    <serviceTask id="sendRejectionMail" name="Send out rejection email"
        flowable:class="org.flowable.SendRejectionMail"/>
    <sequenceFlow sourceRef="sendRejectionMail" targetRef="rejectEnd"/>

    <endEvent id="approveEnd"/>

    <endEvent id="rejectEnd"/>

  </process>

</definitions>

RepositoryService repositoryService = processEngine.getRepositoryService();
Deployment deployment = repositoryService.createDeployment()
  .addClasspathResource("holiday-request.bpmn20.xml")
  .deploy();

ProcessDefinition processDefinition = repositoryService.createProcessDefinitionQuery()
  .deploymentId(deployment.getId())
  .singleResult();
System.out.println("Found process definition : " + processDefinition.getName());

Scanner scanner= new Scanner(System.in);

System.out.println("Who are you?");
String employee = scanner.nextLine();

System.out.println("How many holidays do you want to request?");
Integer nrOfHolidays = Integer.valueOf(scanner.nextLine());

System.out.println("Why do you need them?");
String description = scanner.nextLine();

<process id="holidayRequest" name="Holiday Request" isExecutable="true">

RuntimeService runtimeService = processEngine.getRuntimeService();

Map<String, Object> variables = new HashMap<String, Object>();
variables.put("employee", employee);
variables.put("nrOfHolidays", nrOfHolidays);
variables.put("description", description);
ProcessInstance processInstance =
  runtimeService.startProcessInstanceByKey("holidayRequest", variables);

<userTask id="approveTask" name="Approve or reject request" flowable:candidateGroups="managers"/>

<userTask id="holidayApprovedTask" name="Holiday approved" flowable:assignee="${employee}"/>

TaskService taskService = processEngine.getTaskService();
List<Task> tasks = taskService.createTaskQuery().taskCandidateGroup("managers").list();
System.out.println("You have " + tasks.size() + " tasks:");
for (int i=0; i<tasks.size(); i++) {
  System.out.println((i+1) + ") " + tasks.get(i).getName());
}

System.out.println("Which task would you like to complete?");
int taskIndex = Integer.valueOf(scanner.nextLine());
Task task = tasks.get(taskIndex - 1);
Map<String, Object> processVariables = taskService.getVariables(task.getId());
System.out.println(processVariables.get("employee") + " wants " +
    processVariables.get("nrOfHolidays") + " of holidays. Do you approve this?");

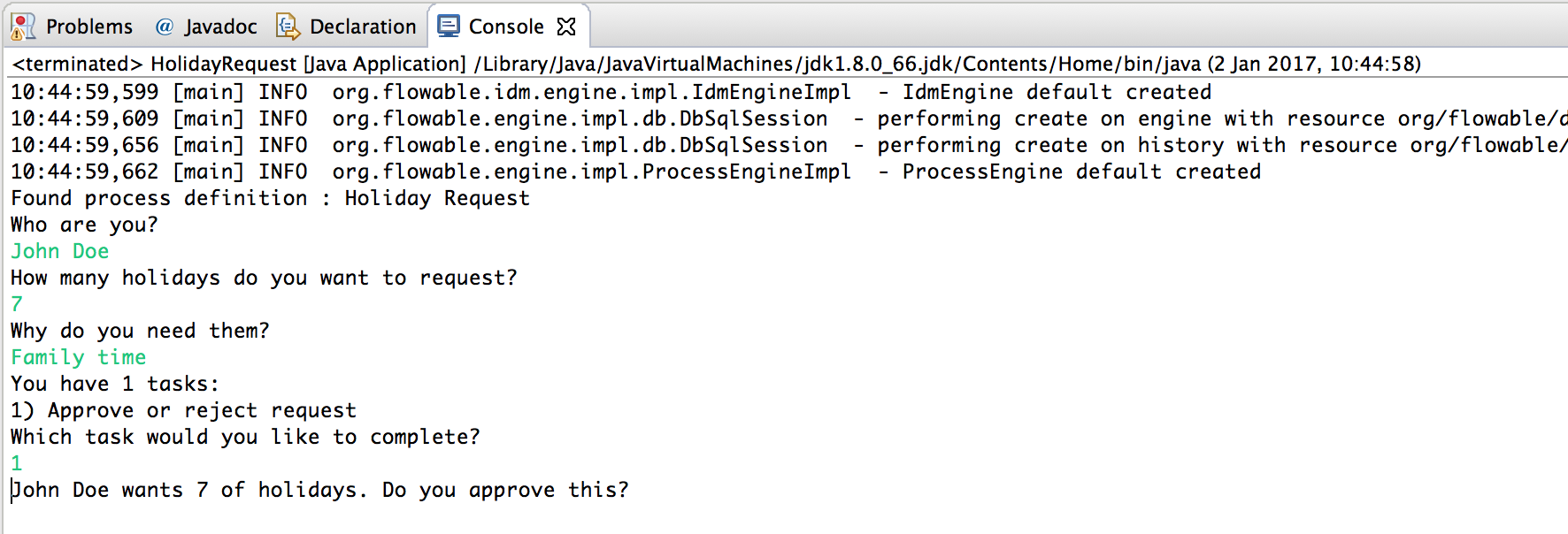

boolean approved = scanner.nextLine().toLowerCase().equals("y");
variables = new HashMap<String, Object>();
variables.put("approved", approved);
taskService.complete(task.getId(), variables);

<serviceTask id="externalSystemCall" name="Enter holidays in external system"
    flowable:class="org.flowable.CallExternalSystemDelegate"/>

package org.flowable;

import org.flowable.engine.delegate.DelegateExecution;
import org.flowable.engine.delegate.JavaDelegate;

public class CallExternalSystemDelegate implements JavaDelegate {

    public void execute(DelegateExecution execution) {
        System.out.println("Calling the external system for employee "
            + execution.getVariable("employee"));
    }

}

HistoryService historyService = processEngine.getHistoryService();
List<HistoricActivityInstance> activities =
  historyService.createHistoricActivityInstanceQuery()
   .processInstanceId(processInstance.getId())
   .finished()
   .orderByHistoricActivityInstanceEndTime().asc()
   .list();

for (HistoricActivityInstance activity : activities) {
  System.out.println(activity.getActivityId() + " took "
    + activity.getDurationInMillis() + " milliseconds");
}

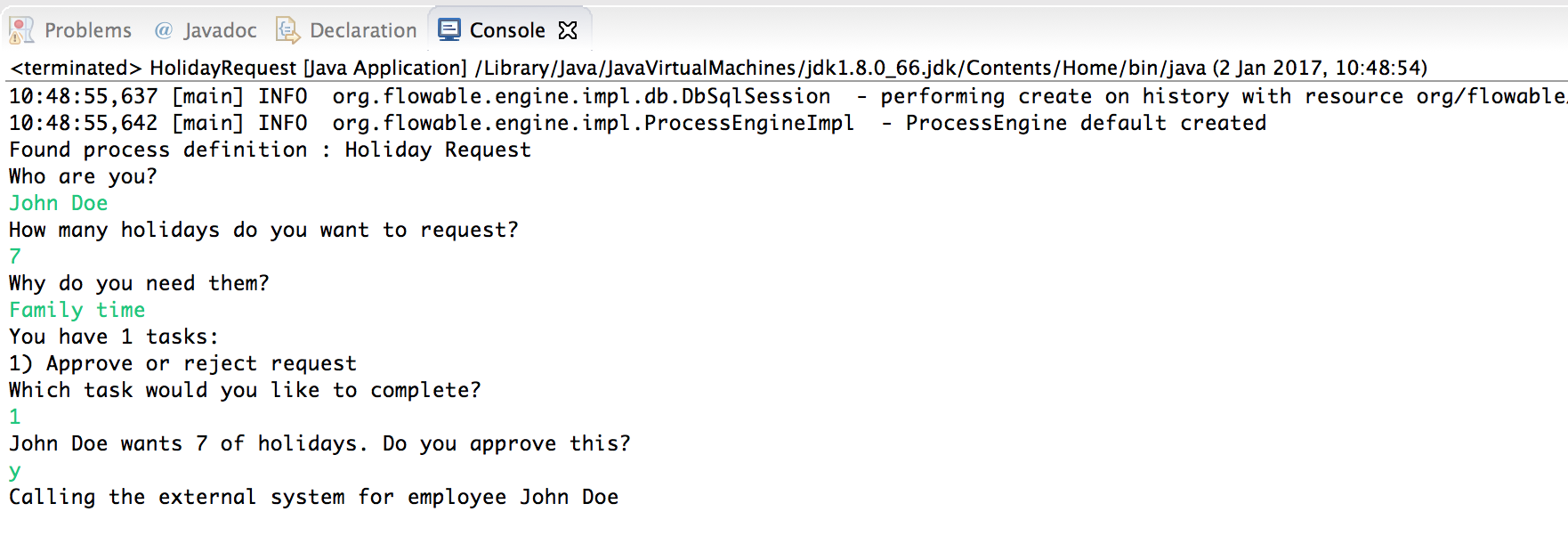

startEvent took 1 milliseconds
approveTask took 2638 milliseconds
decision took 3 milliseconds
externalSystemCall took 1 milliseconds

curl --user rest-admin:test http://localhost:8080/flowable-rest/service/management/engine

curl --user rest-admin:test -F "file=@holiday-request.bpmn20.xml" http://localhost:8080/flowable-rest/service/repository/deployments

curl --user rest-admin:test http://localhost:8080/flowable-rest/service/repository/process-definitions

curl --user rest-admin:test -H "Content-Type: application/json" -X POST -d '{ "processDefinitionKey":"holidayRequest", "variables": [ { "name":"employee", "value": "John Doe" }, { "name":"nrOfHolidays", "value": 7 }]}' http://localhost:8080/flowable-rest/service/runtime/process-instances

{"id":"43","url":"http://localhost:8080/flowable-rest/service/runtime/process-instances/43","businessKey":null,"suspended":false,"ended":false,"processDefinitionId":"holidayRequest:1:42","processDefinitionUrl":"http://localhost:8080/flowable-rest/service/repository/process-definitions/holidayRequest:1:42","activityId":null,"variables":[],"tenantId":"","completed":false}

curl --user rest-admin:test -H "Content-Type: application/json" -X POST -d '{ "candidateGroup" : "managers" }' http://localhost:8080/flowable-rest/service/query/tasks

curl --user rest-admin:test -H "Content-Type: application/json" -X POST -d '{ "action" : "complete", "variables" : [ { "name" : "approved", "value" : true} ]  }' http://localhost:8080/flowable-rest/service/runtime/tasks/25

{"message":"Internal server error","exception":"couldn't instantiate class org.flowable.CallExternalSystemDelegate"}

<?xml version="1.0" encoding="UTF-8"?>
    <Context antiJARLocking="true" path="/flowable-app">
        <Resource auth="Container"
            name="jdbc/flowableDB"
            type="javax.sql.DataSource"
            description="JDBC DataSource"
            url="jdbc:mysql://localhost:3306/flowable"
            driverClassName="com.mysql.jdbc.Driver"
            username="sa"
            password=""
            defaultAutoCommit="false"
            initialSize="5"
            maxWait="5000"
            maxActive="120"
            maxIdle="5"/>
        </Context>

public class MyEventListener implements FlowableEventListener {

  @Override
  public void onEvent(FlowableEvent event) {
    switch (event.getType()) {

      case JOB_EXECUTION_SUCCESS:
        System.out.println("A job well done!");
        break;

      case JOB_EXECUTION_FAILURE:
        System.out.println("A job has failed...");
        break;

      default:
        System.out.println("Event received: " + event.getType());
    }
  }

  @Override
  public boolean isFailOnException() {
    // onEvent方法中的逻辑并不重要，可以忽略日志失败异常……

    return false;
  }
}

<bean id="processEngineConfiguration"
    class="org.flowable.engine.impl.cfg.StandaloneProcessEngineConfiguration">
    ...
    <property name="eventListeners">
      <list>
         <bean class="org.flowable.engine.example.MyEventListener" />
      </list>
    </property>
</bean>

<bean id="processEngineConfiguration"
    class="org.flowable.engine.impl.cfg.StandaloneProcessEngineConfiguration">
    ...
    <property name="typedEventListeners">
      <map>
        <entry key="JOB_EXECUTION_SUCCESS,JOB_EXECUTION_FAILURE" >
          <list>
            <bean class="org.flowable.engine.example.MyJobEventListener" />
          </list>
        </entry>
      </map>
    </property>
</bean>

/**
 * 新增一个监听器，会在所有事件发生时被通知。
 * @param listenerToAdd 要新增的监听器
 */
void addEventListener(FlowableEventListener listenerToAdd);

/**
 * 新增一个监听器，在给定类型的事件发生时被通知。
 * @param listenerToAdd 要新增的监听器
 * @param types 监听器需要监听的事件类型
 */
void addEventListener(FlowableEventListener listenerToAdd, FlowableEventType... types);

/**
 * 从分发器中移除指定监听器。该监听器将不再被通知，无论该监听器注册为监听何种类型。
 * @param listenerToRemove 要移除的监听器
 */
 void removeEventListener(FlowableEventListener listenerToRemove);

/**
 * 将给定事件分发给所有注册监听器。
 * @param event 要分发的事件。
 *
 * @throws FlowableException 当分发事件发生异常，或者{@link FlowableEventDispatcher}被禁用。
 * @throws FlowableIllegalArgumentException 当给定事件不可分发
 */
 void dispatchEvent(FlowableEvent event);

<dependency>
    <groupId>org.flowable</groupId>
    <artifactId>flowable-spring-boot-starter</artifactId>
    <version>${flowable.version}</version>
</dependency>

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication(proxyBeanMethods = false)
public class MyApplication {

    public static void main(String[] args) {
        SpringApplication.run(MyApplication.class, args);
    }

}

<dependency>
	<groupId>com.h2database</groupId>
	<artifactId>h2</artifactId>
	<version>1.4.197</version>
</dependency>

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v2.0.0.RELEASE)

MyApplication                            : Starting MyApplication on ...
MyApplication                            : No active profile set, falling back to default profiles: default
ConfigServletWebServerApplicationContext : Refreshing org.springframework.boot.web.servlet.context.AnnotationConfigServletWebServerApplicationContext@4fdfa676: startup date [Wed Mar 28 12:04:00 CEST 2018]; root of context hierarchy
o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8080 (http)
o.apache.catalina.core.StandardService   : Starting service [Tomcat]
org.apache.catalina.core.StandardEngine  : Starting Servlet Engine: Apache Tomcat/8.5.28
o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
o.s.web.context.ContextLoader            : Root WebApplicationContext: initialization completed in 3085 ms
o.s.b.w.servlet.ServletRegistrationBean  : Servlet dispatcherServlet mapped to [/]
o.s.b.w.servlet.ServletRegistrationBean  : Servlet Flowable IDM Rest API mapped to [/idm-api/*]
o.s.b.w.servlet.ServletRegistrationBean  : Servlet Flowable Form Rest API mapped to [/form-api/*]
o.s.b.w.servlet.ServletRegistrationBean  : Servlet Flowable DMN Rest API mapped to [/dmn-api/*]
o.s.b.w.servlet.ServletRegistrationBean  : Servlet Flowable Content Rest API mapped to [/content-api/*]
o.s.b.w.servlet.ServletRegistrationBean  : Servlet Flowable CMMN Rest API mapped to [/cmmn-api/*]
o.s.b.w.servlet.ServletRegistrationBean  : Servlet Flowable BPMN Rest API mapped to [/process-api/*]
o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'characterEncodingFilter' to: [/*]
o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'hiddenHttpMethodFilter' to: [/*]
o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'httpPutFormContentFilter' to: [/*]
o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'requestContextFilter' to: [/*]
uration$$EnhancerBySpringCGLIB$$3d0c70ac : No deployment resources were found for autodeployment
uration$$EnhancerBySpringCGLIB$$8131eb1a : No deployment resources were found for autodeployment
o.f.e.i.c.ProcessEngineConfigurationImpl : Found 5 Engine Configurators in total:
o.f.e.i.c.ProcessEngineConfigurationImpl : class org.flowable.spring.configurator.SpringIdmEngineConfigurator (priority:100000)
o.f.e.i.c.ProcessEngineConfigurationImpl : class org.flowable.dmn.spring.configurator.SpringDmnEngineConfigurator (priority:200000)
o.f.e.i.c.ProcessEngineConfigurationImpl : class org.flowable.form.spring.configurator.SpringFormEngineConfigurator (priority:300000)
o.f.e.i.c.ProcessEngineConfigurationImpl : class org.flowable.content.spring.configurator.SpringContentEngineConfigurator (priority:400000)
o.f.e.i.c.ProcessEngineConfigurationImpl : class org.flowable.cmmn.spring.configurator.SpringCmmnEngineConfigurator (priority:500000)
o.f.e.i.c.ProcessEngineConfigurationImpl : Executing beforeInit() of class org.flowable.spring.configurator.SpringIdmEngineConfigurator (priority:100000)
o.f.e.i.c.ProcessEngineConfigurationImpl : Executing beforeInit() of class org.flowable.dmn.spring.configurator.SpringDmnEngineConfigurator (priority:200000)
o.f.e.i.c.ProcessEngineConfigurationImpl : Executing beforeInit() of class org.flowable.form.spring.configurator.SpringFormEngineConfigurator (priority:300000)
o.f.e.i.c.ProcessEngineConfigurationImpl : Executing beforeInit() of class org.flowable.content.spring.configurator.SpringContentEngineConfigurator (priority:400000)
o.f.e.i.c.ProcessEngineConfigurationImpl : Executing beforeInit() of class org.flowable.cmmn.spring.configurator.SpringCmmnEngineConfigurator (priority:500000)
com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Starting...
com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Start completed.
o.f.e.i.c.ProcessEngineConfigurationImpl : Executing configure() of class org.flowable.spring.configurator.SpringIdmEngineConfigurator (priority:100000)
.d.AbstractSqlScriptBasedDbSchemaManager : performing create on identity with resource org/flowable/idm/db/create/flowable.h2.create.identity.sql
o.f.idm.engine.impl.IdmEngineImpl        : IdmEngine default created
o.f.e.i.c.ProcessEngineConfigurationImpl : Executing configure() of class org.flowable.dmn.spring.configurator.SpringDmnEngineConfigurator (priority:200000)
o.f.dmn.engine.impl.DmnEngineImpl        : DmnEngine default created
o.f.e.i.c.ProcessEngineConfigurationImpl : Executing configure() of class org.flowable.form.spring.configurator.SpringFormEngineConfigurator (priority:300000)
o.f.form.engine.impl.FormEngineImpl      : FormEngine default created
o.f.e.i.c.ProcessEngineConfigurationImpl : Executing configure() of class org.flowable.content.spring.configurator.SpringContentEngineConfigurator (priority:400000)
o.f.c.engine.ContentEngineConfiguration  : Content file system root : ...
o.f.c.engine.impl.ContentEngineImpl      : ContentEngine default created
o.f.e.i.c.ProcessEngineConfigurationImpl : Executing configure() of class org.flowable.cmmn.spring.configurator.SpringCmmnEngineConfigurator (priority:500000)
o.f.cmmn.engine.CmmnEngineConfiguration  : Found 1 Engine Configurators in total:
o.f.cmmn.engine.CmmnEngineConfiguration  : class org.flowable.cmmn.engine.impl.cfg.IdmEngineConfigurator (priority:100000)
o.f.cmmn.engine.CmmnEngineConfiguration  : Executing beforeInit() of class org.flowable.cmmn.engine.impl.cfg.IdmEngineConfigurator (priority:100000)
o.f.cmmn.engine.CmmnEngineConfiguration  : Executing configure() of class org.flowable.cmmn.engine.impl.cfg.IdmEngineConfigurator (priority:100000)
o.f.idm.engine.impl.IdmEngineImpl        : IdmEngine default created
o.f.cmmn.engine.impl.CmmnEngineImpl      : CmmnEngine default created
o.f.engine.impl.ProcessEngineImpl        : ProcessEngine default created
o.f.j.s.i.a.AbstractAsyncExecutor        : Starting up the async job executor [org.flowable.spring.job.service.SpringAsyncExecutor].
o.f.j.s.i.a.AcquireAsyncJobsDueRunnable  : starting to acquire async jobs due
o.f.j.s.i.a.AcquireTimerJobsRunnable     : starting to acquire async jobs due
o.f.j.s.i.a.ResetExpiredJobsRunnable     : starting to reset expired jobs
o.f.e.impl.cmd.ValidateV5EntitiesCmd     : Total of v5 deployments found: 0
s.w.s.m.m.a.RequestMappingHandlerAdapter : Looking for @ControllerAdvice: org.springframework.boot.web.servlet.context.AnnotationConfigServletWebServerApplicationContext@4fdfa676: startup date [Wed Mar 28 12:04:00 CEST 2018]; root of context hierarchy
s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/error]}" onto public org.springframework.http.ResponseEntity<java.util.Map<java.lang.String, java.lang.Object>> org.springframework.boot.autoconfigure.web.servlet.error.BasicErrorController.error(javax.servlet.http.HttpServletRequest)
s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/error],produces=[text/html]}" onto public org.springframework.web.servlet.ModelAndView org.springframework.boot.autoconfigure.web.servlet.error.BasicErrorController.errorHtml(javax.servlet.http.HttpServletRequest,javax.servlet.http.HttpServletResponse)
o.s.w.s.handler.SimpleUrlHandlerMapping  : Mapped URL path [/webjars/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
o.s.w.s.handler.SimpleUrlHandlerMapping  : Mapped URL path [/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
o.s.w.s.handler.SimpleUrlHandlerMapping  : Mapped URL path [/**/favicon.ico] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler]
o.s.j.e.a.AnnotationMBeanExporter        : Registering beans for JMX exposure on startup
o.s.j.e.a.AnnotationMBeanExporter        : Bean with name 'dataSource' has been autodetected for JMX exposure
o.s.j.e.a.AnnotationMBeanExporter        : Located MBean 'dataSource': registering with JMX server as MBean [com.zaxxer.hikari:name=dataSource,type=HikariDataSource]
o.s.c.support.DefaultLifecycleProcessor  : Starting beans in phase -20
o.s.c.support.DefaultLifecycleProcessor  : Starting beans in phase 0
o.s.c.support.DefaultLifecycleProcessor  : Starting beans in phase 20
o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8080 (http) with context path ''
flowable.Application                     : Started Application in 18.235 seconds (JVM running for 19.661)

<?xml version="1.0" encoding="UTF-8"?>
<definitions
        xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
        xmlns:flowable="http://flowable.org/bpmn"
        targetNamespace="Examples">

    <process id="oneTaskProcess" name="The One Task Process">
        <startEvent id="theStart" />
        <sequenceFlow id="flow1" sourceRef="theStart" targetRef="theTask" />
        <userTask id="theTask" name="my task" />
        <sequenceFlow id="flow2" sourceRef="theTask" targetRef="theEnd" />
        <endEvent id="theEnd" />
    </process>

</definitions>

@SpringBootApplication(proxyBeanMethods = false)
public class MyApplication {

    public static void main(String[] args) {
        SpringApplication.run(MyApplication.class, args);
    }

    @Bean
    public CommandLineRunner init(final RepositoryService repositoryService,
                                  final RuntimeService runtimeService,
                                  final TaskService taskService) {

        return new CommandLineRunner() {
            @Override
            public void run(String... strings) throws Exception {
                System.out.println("Number of process definitions : "
                	+ repositoryService.createProcessDefinitionQuery().count());
                System.out.println("Number of tasks : " + taskService.createTaskQuery().count());
                runtimeService.startProcessInstanceByKey("oneTaskProcess");
                System.out.println("Number of tasks after process start: "
                    + taskService.createTaskQuery().count());
            }
        };
    }
}

Number of process definitions : 1
Number of tasks : 0
Number of tasks after process start : 1

spring.datasource.url=jdbc:mysql://127.0.0.1:3306/flowable-spring-boot?characterEncoding=UTF-8
spring.datasource.username=flowable
spring.datasource.password=flowable

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>5.1.45</version>
</dependency>

org.flowable.engine.impl.db.DbSqlSession   : performing create on engine with resource org/flowable/db/create/flowable.mysql.create.engine.sql
org.flowable.engine.impl.db.DbSqlSession   : performing create on history with resource org/flowable/db/create/flowable.mysql.create.history.sql
org.flowable.engine.impl.db.DbSqlSession   : performing create on identity with resource org/flowable/db/create/flowable.mysql.create.identity.sql

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
    <version>${spring.boot.version}</version>
</dependency>

@Service
public class MyService {

    @Autowired
    private RuntimeService runtimeService;

    @Autowired
    private TaskService taskService;

    @Transactional
    public void startProcess() {
        runtimeService.startProcessInstanceByKey("oneTaskProcess");
    }

    @Transactional
    public List<Task> getTasks(String assignee) {
        return taskService.createTaskQuery().taskAssignee(assignee).list();
    }

}

@RestController
public class MyRestController {

    @Autowired
    private MyService myService;

    @PostMapping(value="/process")
    public void startProcessInstance() {
        myService.startProcess();
    }

    @RequestMapping(value="/tasks", method= RequestMethod.GET, produces=MediaType.APPLICATION_JSON_VALUE)
    public List<TaskRepresentation> getTasks(@RequestParam String assignee) {
        List<Task> tasks = myService.getTasks(assignee);
        List<TaskRepresentation> dtos = new ArrayList<TaskRepresentation>();
        for (Task task : tasks) {
            dtos.add(new TaskRepresentation(task.getId(), task.getName()));
        }
        return dtos;
    }

    static class TaskRepresentation {

        private String id;
        private String name;

        public TaskRepresentation(String id, String name) {
            this.id = id;
            this.name = name;
        }

        public String getId() {
            return id;
        }
        public void setId(String id) {
            this.id = id;
        }
        public String getName() {
            return name;
        }
        public void setName(String name) {
            this.name = name;
        }

    }

}

curl http://localhost:8080/tasks?assignee=kermit
[]

curl -X POST  http://localhost:8080/process
curl http://localhost:8080/tasks?assignee=kermit
[{"id":"10004","name":"my task"}]

<dependency>
    <groupId>org.flowable</groupId>
    <artifactId>flowable-spring-boot-starter</artifactId>
    <version>${flowable.version}</version>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-jpa</artifactId>
    <version>${spring-boot.version</version>
</dependency>

@Entity
class Person {

    @Id
    @GeneratedValue
    private Long id;

    private String username;

    private String firstName;

    private String lastName;

    private Date birthDate;

    public Person() {
    }

    public Person(String username, String firstName, String lastName, Date birthDate) {
        this.username = username;
        this.firstName = firstName;
        this.lastName = lastName;
        this.birthDate = birthDate;
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

    public Date getBirthDate() {
        return birthDate;
    }

    public void setBirthDate(Date birthDate) {
        this.birthDate = birthDate;
    }
}

spring.jpa.hibernate.ddl-auto=update

@Repository
public interface PersonRepository extends JpaRepository<Person, Long> {

    Person findByUsername(String username);
}

@Service
@Transactional
public class MyService {

    @Autowired
    private RuntimeService runtimeService;

    @Autowired
    private TaskService taskService;

    @Autowired
    private PersonRepository personRepository;

    public void startProcess(String assignee) {

        Person person = personRepository.findByUsername(assignee);

        Map<String, Object> variables = new HashMap<String, Object>();
        variables.put("person", person);
        runtimeService.startProcessInstanceByKey("oneTaskProcess", variables);
    }

    public List<Task> getTasks(String assignee) {
        return taskService.createTaskQuery().taskAssignee(assignee).list();
    }

    public void createDemoUsers() {
        if (personRepository.findAll().size() == 0) {
            personRepository.save(new Person("jbarrez", "Joram", "Barrez", new Date()));
            personRepository.save(new Person("trademakers", "Tijs", "Rademakers", new Date()));
        }
    }

}

@Bean
public CommandLineRunner init(final MyService myService) {

    return new CommandLineRunner() {
    	public void run(String... strings) throws Exception {
        	myService.createDemoUsers();
        }
    };
}

@RestController
public class MyRestController {

    @Autowired
    private MyService myService;

    @PostMapping(value="/process")
    public void startProcessInstance(@RequestBody StartProcessRepresentation startProcessRepresentation) {
        myService.startProcess(startProcessRepresentation.getAssignee());
    }

   ...

    static class StartProcessRepresentation {

        private String assignee;

        public String getAssignee() {
            return assignee;
        }

        public void setAssignee(String assignee) {
            this.assignee = assignee;
        }
    }

<userTask id="theTask" name="my task" flowable:assignee="${person.id}"/>

curl -H "Content-Type: application/json" -d '{"assignee" : "jbarrez"}' http://localhost:8080/process

curl http://localhost:8080/tasks?assignee=1

[{"id":"12505","name":"my task"}]

{
  "completedTaskCountToday": 0,
  "deployedProcessDefinitions": [
    "oneTaskProcess (v1)"
  ],
  "processDefinitionCount": 1,
  "cachedProcessDefinitionCount": 0,
  "runningProcessInstanceCount": {
    "oneTaskProcess (v1)": 0
  },
  "completedTaskCount": 2,
  "completedActivities": 3,
  "completedProcessInstanceCount": {
    "oneTaskProcess (v1)": 0
  },
  "openTaskCount": 0
}

{
  "flowable": {
    "version": "6.3.0.1"
  }
}

# ===================================================================
# Common Flowable Spring Boot Properties
# 通用Flowable Spring Boot参数
#
# This sample file is provided as a guideline. Do NOT copy it in its
# entirety to your own application.	           ^^^
# 本示例文件只作为指导。请不要直接拷贝至你自己的应用中。
# ===================================================================

# Core (Process) FlowableProperties
# 核心（流程）
flowable.check-process-definitions=true # 是否需要自动部署流程定义。
flowable.custom-mybatis-mappers= # 需要添加至引擎的自定义Mybatis映射的FQN。
flowable.custom-mybatis-x-m-l-mappers= # 需要添加至引擎的自定义Mybatis XML映射的路径。
flowable.database-schema= # 如果数据库返回的元数据不正确，可以在这里设置schema用于检测/生成表。
flowable.database-schema-update=true # 数据库schema更新策略。
flowable.db-history-used=true # 是否要使用db历史。
flowable.deployment-name=SpringBootAutoDeployment # 自动部署的名称。
flowable.history-level=audit # 要使用的历史级别。
flowable.process-definition-location-prefix=classpath*:/processes/ # 自动部署时查找流程的目录。
flowable.process-definition-location-suffixes=**.bpmn20.xml,**.bpmn # 'processDefinitionLocationPrefix'路径下需要部署的文件的后缀（扩展名）。

# Process FlowableProcessProperties
# 流程
flowable.process.definition-cache-limit=-1 # 流程定义缓存中保存流程定义的最大数量。默认值为-1（缓存所有流程定义）。
flowable.process.enable-safe-xml=true # 在解析BPMN XML文件时进行额外检查。参见 https://www.flowable.org/docs/userguide/index.html#advanced.safe.bpmn.xml 。不幸的是，部分平台（JDK 6，JBoss）上无法使用这个功能，因此如果你所用的平台在XML解析时不支持StaxSource，需要禁用这个功能。
flowable.process.servlet.load-on-startup=-1 # 启动时加载Process servlet。
flowable.process.servlet.name=Flowable BPMN Rest API # Process servlet的名字。
flowable.process.servlet.path=/process-api # Process servelet的context path。

# Process Async Executor
# 流程异步执行器
flowable.process.async-executor-activate=true # 是否启用异步执行器。
flowable.process.async.executor.async-job-lock-time-in-millis=300000 # 异步作业在被异步执行器取走后的锁定时间（以毫秒计）。在这段时间内，其它异步执行器不会尝试获取及锁定这个任务。
flowable.process.async.executor.default-async-job-acquire-wait-time-in-millis=10000 # 异步作业获取线程在进行下次获取查询前的等待时间（以毫秒计）。只在当次没有取到新的异步作业，或者只取到很少的异步作业时生效。默认值 = 10秒。
flowable.process.async.executor.default-queue-size-full-wait-time-in-millis=0 # 异步作业（包括定时器作业与异步执行）获取线程在队列满时，等待执行下次查询的等待时间（以毫秒计）。默认值为0（以向后兼容）
flowable.process.async.executor.default-timer-job-acquire-wait-time-in-millis=10000 # 定时器作业获取线程在进行下次获取查询前的等待时间（以毫秒计）。只在当次没有取到新的定时器作业，或者只取到很少的定时器作业时生效。默认值 = 10秒。
flowable.process.async.executor.max-async-jobs-due-per-acquisition=1 # （译者补）单次查询的异步作业数量。默认值为1，以降低乐观锁异常的可能性。除非你知道自己在做什么，否则请不要修改这个值。
flowable.process.async.executor.retry-wait-time-in-millis=500 # ???（译者补不了了）
flowable.process.async.executor.timer-lock-time-in-millis=300000 # 定时器作业在被异步执行器取走后的锁定时间（以毫秒计）。在这段时间内，其它异步执行器不会尝试获取及锁定这个任务。


# CMMN FlowableCmmnProperties
flowable.cmmn.deploy-resources=true # 是否部署资源。默认值为'true'。
flowable.cmmn.deployment-name=SpringBootAutoDeployment # CMMN资源部署的名字。
flowable.cmmn.enable-safe-xml=true # 在解析CMMN XML文件时进行额外检查。参见 https://www.flowable.org/docs/userguide/index.html#advanced.safe.bpmn.xml 。不幸的是，部分平台（JDK 6，JBoss）上无法使用这个功能，因此如果你所用的平台在XML解析时不支持StaxSource，需要禁用这个功能。
flowable.cmmn.enabled=true # 是否启用CMMN引擎。
flowable.cmmn.resource-location=classpath*:/cases/ # CMMN资源的路径。
flowable.cmmn.resource-suffixes=**.cmmn,**.cmmn11,**.cmmn.xml,**.cmmn11.xml # 需要扫描的资源后缀名。
flowable.cmmn.servlet.load-on-startup=-1 # 启动时加载CMMN servlet。
flowable.cmmn.servlet.name=Flowable CMMN Rest API # CMMN servlet的名字。
flowable.cmmn.servlet.path=/cmmn-api # CMMN servlet的context path。

# CMMN Async Executor
# CMMN异步执行器
flowable.cmmn.async-executor-activate=true # 是否启用异步执行器。
flowable.cmmn.async.executor.async-job-lock-time-in-millis=300000 # 异步作业在被异步执行器取走后的锁定时间（以毫秒计）。在这段时间内，其它异步执行器不会尝试获取及锁定这个任务。
flowable.cmmn.async.executor.default-async-job-acquire-wait-time-in-millis=10000 # 异步作业获取线程在进行下次获取查询前的等待时间（以毫秒计）。只在当次没有取到新的异步作业，或者只取到很少的异步作业时生效。默认值 = 10秒。
flowable.cmmn.async.executor.default-queue-size-full-wait-time-in-millis=0 # 异步作业（包括定时器作业与异步执行）获取线程在队列满时，等待执行下次查询的等待时间（以毫秒计）。默认值为0（以向后兼容）
flowable.cmmn.async.executor.default-timer-job-acquire-wait-time-in-millis=10000 # 定时器作业获取线程在进行下次获取查询前的等待时间（以毫秒计）。只在当次没有取到新的定时器作业，或者只取到很少的定时器作业时生效。默认值 = 10秒。
flowable.cmmn.async.executor.max-async-jobs-due-per-acquisition=1 # （译者补）单次查询的异步作业数量。默认值为1，以降低乐观锁异常的可能性。除非你知道自己在做什么，否则请不要修改这个值。
flowable.cmmn.async.executor.retry-wait-time-in-millis=500 #（译者补不了了）
flowable.cmmn.async.executor.timer-lock-time-in-millis=300000 # 定时器作业在被异步执行器取走后的锁定时间（以毫秒计）。在这段时间内，其它异步执行器不会尝试获取及锁定这个任务。

# Content FlowableContentProperties
flowable.content.enabled=true # 是否启动Content引擎。
flowable.content.servlet.load-on-startup=-1 # 启动时加载Content servlet。
flowable.content.servlet.name=Flowable Content Rest API # Content servlet的名字。
flowable.content.servlet.path=/content-api # Content servlet的context path。
flowable.content.storage.create-root=true # 如果根路径不存在，是否需要创建？
flowable.content.storage.root-folder= # 存储content文件（如上传的任务附件，或表单文件）的根路径。

# DMN FlowableDmnProperties
flowable.dmn.deploy-resources=true # 是否部署资源。默认为'true'。
flowable.dmn.deployment-name=SpringBootAutoDeployment # DMN资源部署的名字。
flowable.dmn.enable-safe-xml=true # 在解析DMN XML文件时进行额外检查。参见 https://www.flowable.org/docs/userguide/index.html#advanced.safe.bpmn.xml 。不幸的是，部分平台（JDK 6，JBoss）上无法使用这个功能，因此如果你所用的平台在XML解析时不支持StaxSource，需要禁用这个功能。
flowable.dmn.enabled=true # 是否启用DMN引擎。
flowable.dmn.history-enabled=true # 是否启用DMN引擎的历史。
flowable.dmn.resource-location=classpath*:/dmn/ # DMN资源的路径。
flowable.dmn.resource-suffixes=**.dmn,**.dmn.xml,**.dmn11,**.dmn11.xml # 需要扫描的资源后缀名。
flowable.dmn.servlet.load-on-startup=-1 # 启动时加载DMN servlet。
flowable.dmn.servlet.name=Flowable DMN Rest API # DMN servlet的名字。
flowable.dmn.servlet.path=/dmn-api # DMN servlet的context path。
flowable.dmn.strict-mode=true # 如果希望避免抉择表命中策略检查导致失败，可以将本参数设置为false。如果检查发现了错误，会直接返回错误前一刻的中间结果。

# Form FlowableFormProperties
flowable.form.deploy-resources=true # 是否部署资源。默认为'true'。
flowable.form.deployment-name=SpringBootAutoDeployment # Form资源部署的名字。
flowable.form.enabled=true # 是否启用Form引擎。
flowable.form.resource-location=classpath*:/forms/ # Form资源的路径。
flowable.form.resource-suffixes=**.form # 需要扫描的资源后缀名。
flowable.form.servlet.load-on-startup=-1 # 启动时加载Form servlet。
flowable.form.servlet.name=Flowable Form Rest API # Form servlet的名字。
flowable.form.servlet.path=/form-api # Form servlet的context path。

# IDM FlowableIdmProperties
flowable.idm.enabled=true # 是否启用IDM引擎。
flowable.idm.password-encoder= # 使用的密码编码类型。
flowable.idm.servlet.load-on-startup=-1 # 启动时加载IDM servlet。
flowable.idm.servlet.name=Flowable IDM Rest API # IDM servlet的名字。
flowable.idm.servlet.path=/idm-api # IDM servlet的context path。

# IDM Ldap FlowableLdapProperties
flowable.idm.ldap.attribute.email= # 用户email的属性名。
flowable.idm.ldap.attribute.first-name= # 用户名字的属性名。
flowable.idm.ldap.attribute.group-id= # 用户组ID的属性名。
flowable.idm.ldap.attribute.group-name= # 用户组名的属性名。
flowable.idm.ldap.attribute.group-type= # 用户组类型的属性名。
flowable.idm.ldap.attribute.last-name= # 用户姓的属性名。
flowable.idm.ldap.attribute.user-id= # 用户ID的属性名。
flowable.idm.ldap.base-dn= # 查找用户与组的DN（标志名称 distinguished name）。
flowable.idm.ldap.cache.group-size=-1 # 设置{@link org.flowable.ldap.LDAPGroupCache}的大小。这是LRU缓存，用于缓存用户及组，以避免每次都查询LDAP系统。
flowable.idm.ldap.custom-connection-parameters= # 用于设置所有没有专用setter的LDAP连接参数。查看 http://docs.oracle.com/javase/tutorial/jndi/ldap/jndi.html 介绍的自定义参数。参数包括配置链接池，安全设置，等等。
flowable.idm.ldap.enabled=false # 是否启用LDAP IDM 服务。
flowable.idm.ldap.group-base-dn= # 组查找的DN。
flowable.idm.ldap.initial-context-factory=com.sun.jndi.ldap.LdapCtxFactory # 初始化上下文工厂的类名。
flowable.idm.ldap.password= # 连接LDAP系统的密码。
flowable.idm.ldap.port=-1 # LDAP系统的端口。
flowable.idm.ldap.query.all-groups= # 查询所有组所用的语句。
flowable.idm.ldap.query.all-users= # 查询所有用户所用的语句。
flowable.idm.ldap.query.groups-for-user= # 按照指定用户查询所属组所用的语句
flowable.idm.ldap.query.user-by-full-name-like= # 按照给定全名查找用户所用的语句。
flowable.idm.ldap.query.user-by-id= # 按照userId查找用户所用的语句。
flowable.idm.ldap.search-time-limit=0 # 查询LDAP的超时时间（以毫秒计）。默认值为'0'，即“一直等待”。
flowable.idm.ldap.security-authentication=simple # 连接LDAP系统所用的'java.naming.security.authentication'参数的值。
flowable.idm.ldap.server= # LDAP系统的主机名。如'ldap://localhost'。
flowable.idm.ldap.user= # 连接LDAP系统的用户ID。
flowable.idm.ldap.user-base-dn= # 查找用户的DN。

# Flowable Mail FlowableMailProperties
flowable.mail.server.default-from=flowable@localhost # 发送邮件时使用的默认发信人地址。
flowable.mail.server.host=localhost # 邮件服务器。
flowable.mail.server.password= # 邮件服务器的登录密码。
flowable.mail.server.port=1025 # 邮件服务器的端口号。
flowable.mail.server.ssl-port=1465 # SSL邮件服务器的端口号。
flowable.mail.server.use-ssl=false # 是否使用SSL/TLS加密SMTP传输连接（即SMTPS/POPS)。
flowable.mail.server.use-tls=false # 使用或禁用STARTTLS加密。
flowable.mail.server.username= # 邮件服务器的登录用户名。如果为空，则不需要登录。

# Flowable Http FlowableHttpProperties
flowable.http.user-system-properties=false # 是否使用系统属性 (e.g. http.proxyPort).
flowable.http.connect-timeout=5s # 连接http客户端的超时时间
flowable.http.socket-timeout=5s #  http客户端的Socket超时时间
flowable.http.connection-request-timeout=5s #  http客户端的连接请求超时时间
flowable.http.request-retry-limit=3 #  请求http客户端的重试限制
flowable.http.disable-cert-verify=false # 是否禁用http客户端的证书验证

# Flowable REST
flowable.rest.app.cors.enabled=true # Whether to enable CORS requests at all. If false, the other properties have no effect
flowable.rest.app.cors.allow-credentials=true # Whether to include credentials in a CORS request
flowable.rest.app.cors.allowed-origins=* # Comma-separated URLs to accept CORS requests from
flowable.rest.app.cors.allowed-headers=* # Comma-separated HTTP headers to allow in a CORS request
flowable.rest.app.cors.allowed-methods=DELETE,GET,PATCH,POST,PUT # Comma-separated HTTP verbs to allow in a CORS request
flowable.rest.app.cors.exposed-headers=* # Comma-separated list of headers to expose in CORS response

# Actuator
management.endpoint.flowable.cache.time-to-live=0ms # 缓存响应的最大时间。
management.endpoint.flowable.enabled=true # 是否启用flowable端点。

String barFileName = "path/to/process-one.bar";
ZipInputStream inputStream = new ZipInputStream(new FileInputStream(barFileName));

repositoryService.createDeployment()
    .name("process-one.bar")
    .addZipInputStream(inputStream)
    .deploy();

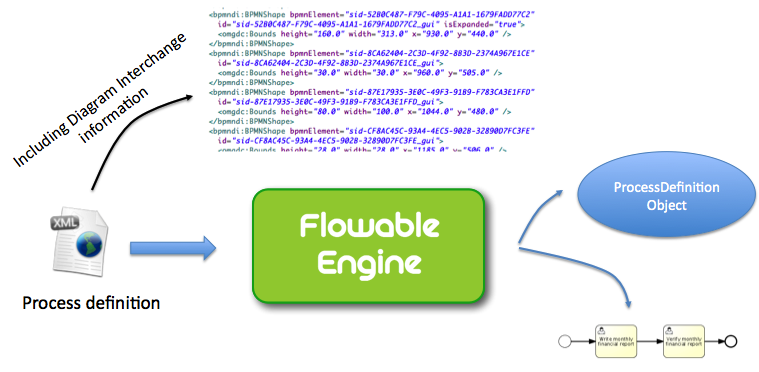

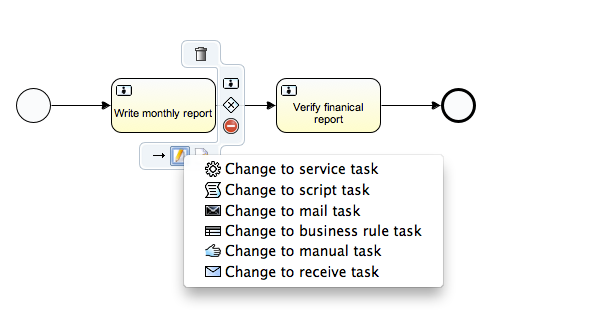

<definitions id="definitions"
  targetNamespace="http://flowable.org/bpmn20"
  xmlns:flowable="http://flowable.org/bpmn"
  xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL">

    <process id="financialReport" name="Monthly financial report reminder process">

      <startEvent id="theStart" />

      <sequenceFlow id="flow1" sourceRef="theStart" targetRef="writeReportTask" />

      <userTask id="writeReportTask" name="Write monthly financial report" >
        <documentation>
          Write monthly financial report for publication to shareholders.
        </documentation>
        <potentialOwner>
          <resourceAssignmentExpression>
            <formalExpression>accountancy</formalExpression>
          </resourceAssignmentExpression>
        </potentialOwner>
      </userTask>

      <sequenceFlow id="flow2" sourceRef="writeReportTask" targetRef="verifyReportTask" />

      <userTask id="verifyReportTask" name="Verify monthly financial report" >
        <documentation>
          Verify monthly financial report composed by the accountancy department.
          This financial report is going to be sent to all the company shareholders.
        </documentation>
        <potentialOwner>
          <resourceAssignmentExpression>
            <formalExpression>management</formalExpression>
          </resourceAssignmentExpression>
        </potentialOwner>
      </userTask>

      <sequenceFlow id="flow3" sourceRef="verifyReportTask" targetRef="theEnd" />

      <endEvent id="theEnd" />

    </process>

</definitions>

Deployment deployment = repositoryService.createDeployment()
  .addClasspathResource("FinancialReportProcess.bpmn20.xml")
  .deploy();

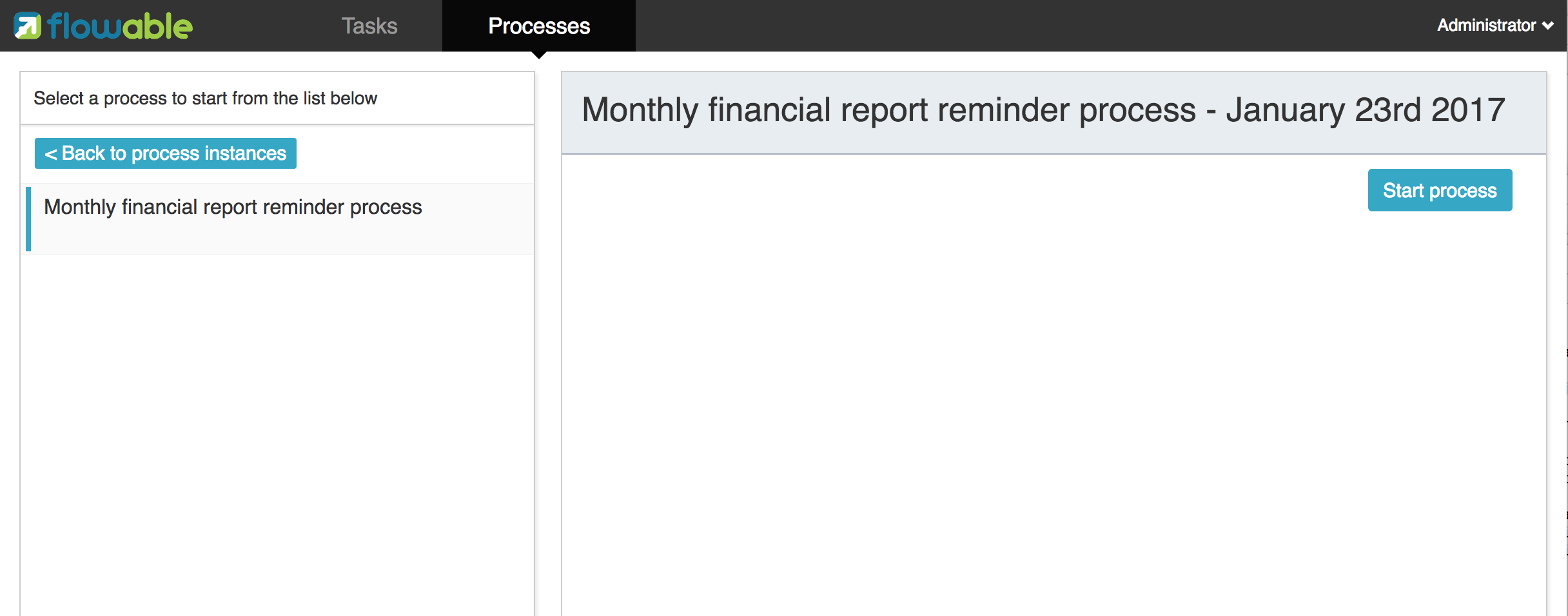

ProcessInstance processInstance = runtimeService.startProcessInstanceByKey("financialReport");

public static void main(String[] args) {

  // 创建Flowable流程引擎
  ProcessEngine processEngine = ProcessEngineConfiguration
    .createStandaloneProcessEngineConfiguration()
    .buildProcessEngine();

  // 获取Flowable服务
  RepositoryService repositoryService = processEngine.getRepositoryService();
  RuntimeService runtimeService = processEngine.getRuntimeService();

  // 部署流程定义
  repositoryService.createDeployment()
    .addClasspathResource("FinancialReportProcess.bpmn20.xml")
    .deploy();

  // 启动流程实例
  runtimeService.startProcessInstanceByKey("financialReport");
}

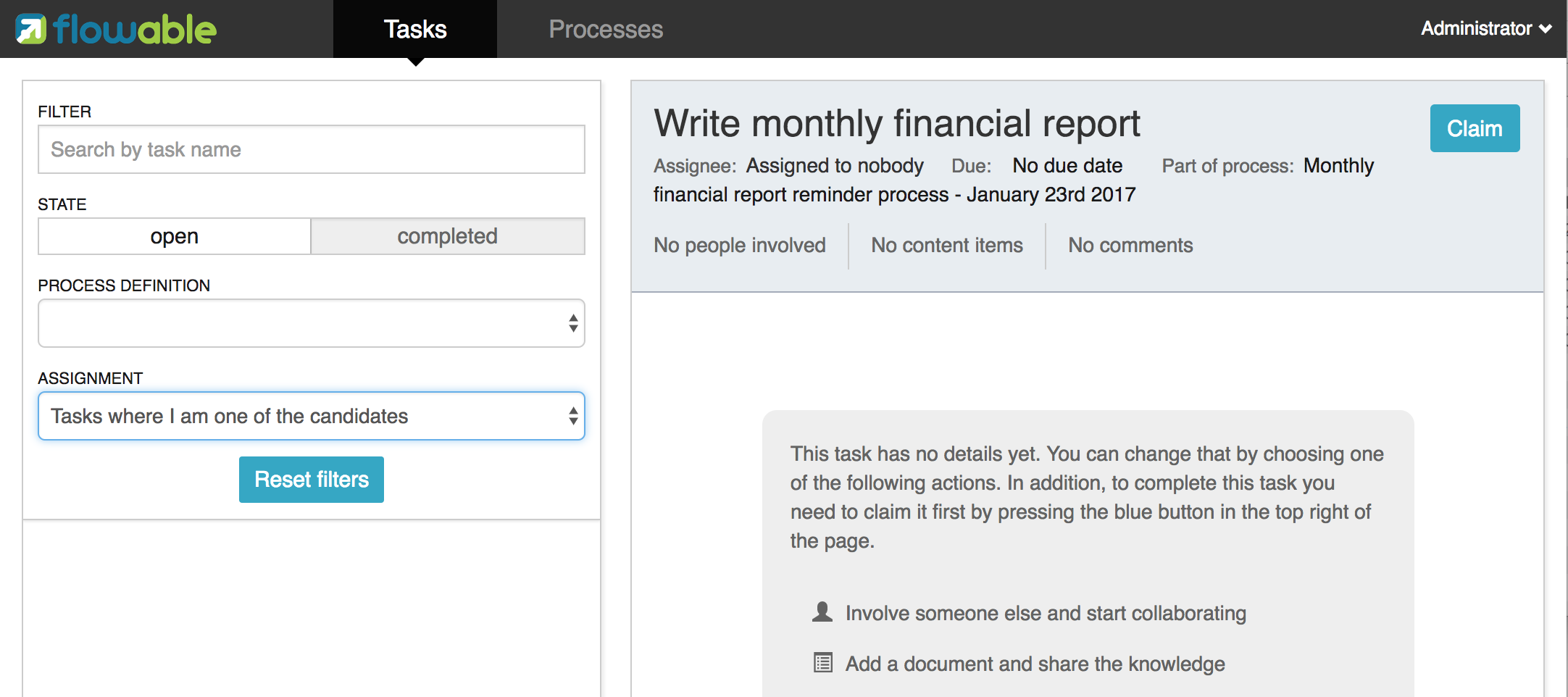

List<Task> tasks = taskService.createTaskQuery().taskCandidateUser("kermit").list();

<potentialOwner>
  <resourceAssignmentExpression>
    <formalExpression>accountancy</formalExpression>
  </resourceAssignmentExpression>
</potentialOwner>

TaskService taskService = processEngine.getTaskService();
List<Task> tasks = taskService.createTaskQuery().taskCandidateGroup("accountancy").list();

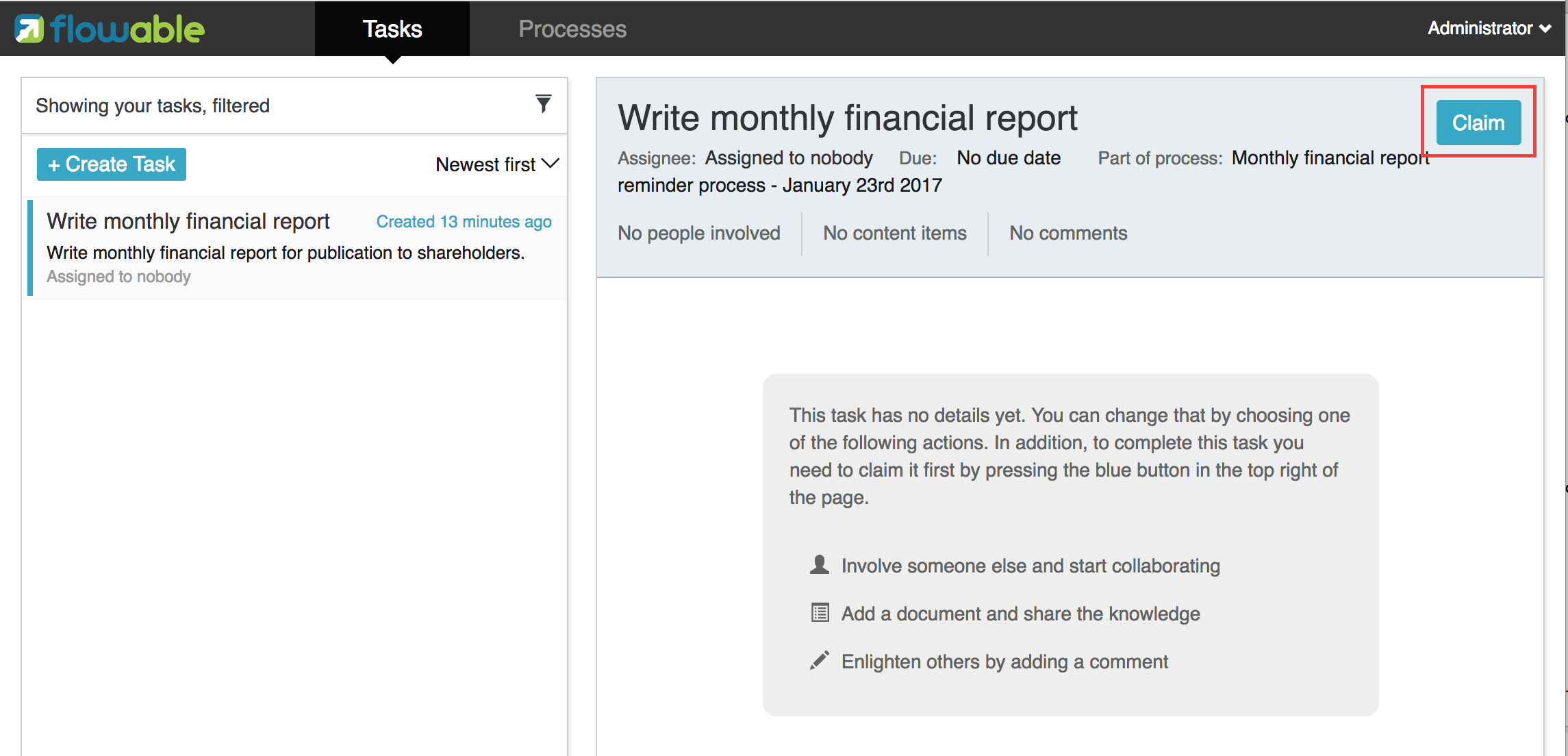

taskService.claim(task.getId(), "fozzie");

List<Task> tasks = taskService.createTaskQuery().taskAssignee("fozzie").list();

taskService.complete(task.getId());

HistoryService historyService = processEngine.getHistoryService();
HistoricProcessInstance historicProcessInstance =
historyService.createHistoricProcessInstanceQuery().processInstanceId(procId).singleResult();
System.out.println("Process instance end time: " + historicProcessInstance.getEndTime());

public class TenMinuteTutorial {

  public static void main(String[] args) {

    // 创建Flowable流程引擎
    ProcessEngine processEngine = ProcessEngineConfiguration
      .createStandaloneProcessEngineConfiguration()
      .buildProcessEngine();

    // 获取Flowable服务
    RepositoryService repositoryService = processEngine.getRepositoryService();
    RuntimeService runtimeService = processEngine.getRuntimeService();

    // 部署流程定义
    repositoryService.createDeployment()
      .addClasspathResource("FinancialReportProcess.bpmn20.xml")
      .deploy();

    // 启动流程实例
    String procId = runtimeService.startProcessInstanceByKey("financialReport").getId();

    // 获取第一个任务
    TaskService taskService = processEngine.getTaskService();
    List<Task> tasks = taskService.createTaskQuery().taskCandidateGroup("accountancy").list();
    for (Task task : tasks) {
      System.out.println("Following task is available for accountancy group: " + task.getName());

      // 申领任务
      taskService.claim(task.getId(), "fozzie");
    }

    // 验证Fozzie获取了任务
    tasks = taskService.createTaskQuery().taskAssignee("fozzie").list();
    for (Task task : tasks) {
      System.out.println("Task for fozzie: " + task.getName());

      // 完成任务
      taskService.complete(task.getId());
    }

    System.out.println("Number of tasks for fozzie: "
            + taskService.createTaskQuery().taskAssignee("fozzie").count());

    // 获取并申领第二个任务
    tasks = taskService.createTaskQuery().taskCandidateGroup("management").list();
    for (Task task : tasks) {
      System.out.println("Following task is available for management group: " + task.getName());
      taskService.claim(task.getId(), "kermit");
    }

    // 完成第二个任务并结束流程
    for (Task task : tasks) {
      taskService.complete(task.getId());
    }

    // 验证流程已经结束
    HistoryService historyService = processEngine.getHistoryService();
    HistoricProcessInstance historicProcessInstance =
      historyService.createHistoricProcessInstanceQuery().processInstanceId(procId).singleResult();
    System.out.println("Process instance end time: " + historicProcessInstance.getEndTime());
  }

}

<timerEventDefinition flowable:businessCalendarName="custom">
    ...
</timerEventDefinition>

<timerEventDefinition>
    <timeDate>2011-03-11T12:13:14</timeDate>
</timerEventDefinition>

<timerEventDefinition>
    <timeDuration>P10D</timeDuration>
</timerEventDefinition>

<timerEventDefinition>
    <timeCycle flowable:endDate="2015-02-25T16:42:11+00:00">R3/PT10H</timeCycle>
</timerEventDefinition>

<timerEventDefinition>
    <timeCycle>R3/PT10H/${EndDate}</timeCycle>
</timerEventDefinition>

0 0/5 * * * ?

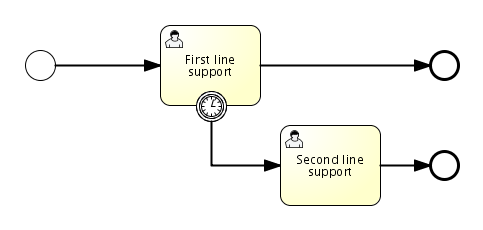

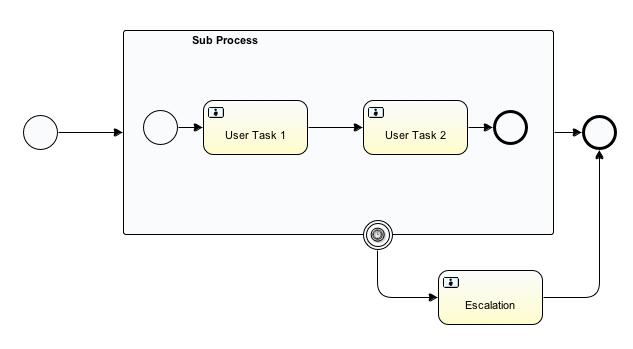

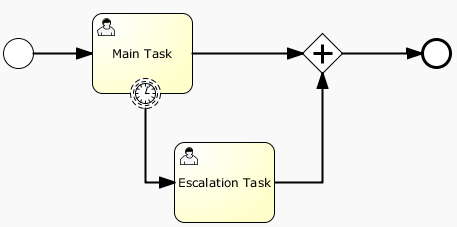

<boundaryEvent id="escalationTimer" cancelActivity="true" attachedToRef="firstLineSupport">
  <timerEventDefinition>
    <timeDuration>${duration}</timeDuration>
  </timerEventDefinition>
</boundaryEvent>

<endEvent id="myErrorEndEvent">
  <errorEventDefinition errorRef="myError" />
</endEvent>

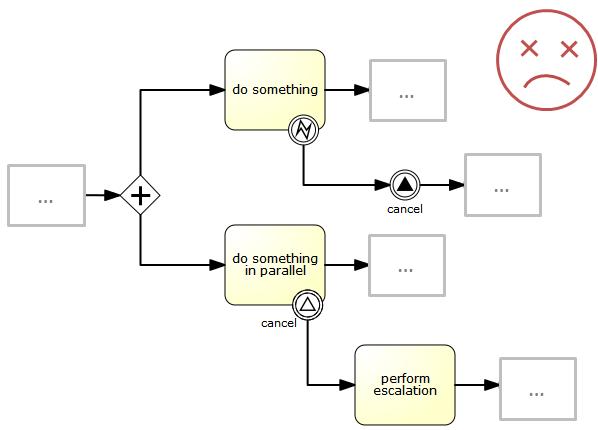

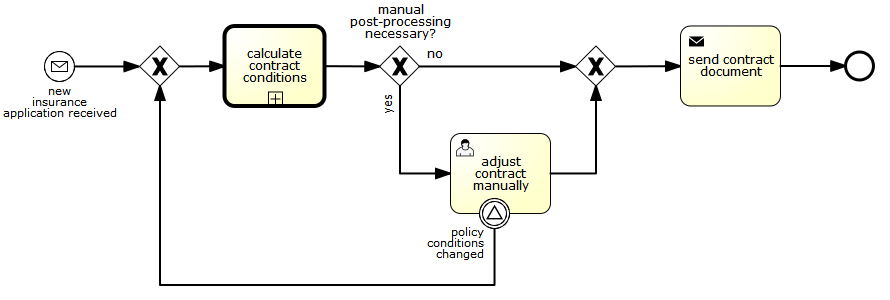

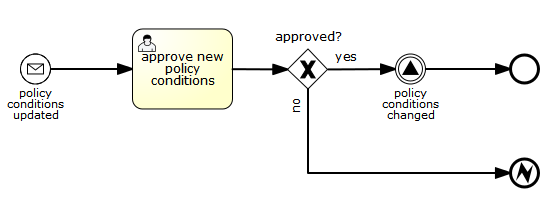

<definitions... >
    <!-- 声明信号 -->
    <signal id="alertSignal" name="alert" />

    <process id="catchSignal">
        <intermediateThrowEvent id="throwSignalEvent" name="Alert">
            <!-- 信号事件定义 -->
            <signalEventDefinition signalRef="alertSignal" />
        </intermediateThrowEvent>
        ...
        <intermediateCatchEvent id="catchSignalEvent" name="On Alert">
            <!-- 信号事件定义 -->
            <signalEventDefinition signalRef="alertSignal" />
        </intermediateCatchEvent>
        ...
    </process>
</definitions>

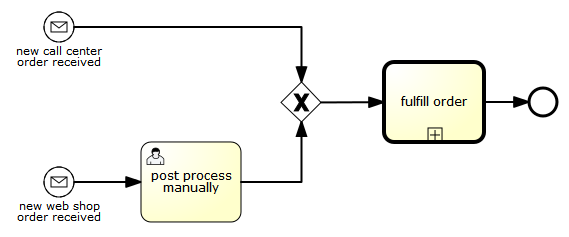

<definitions id="definitions"
  xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
  xmlns:flowable="http://flowable.org/bpmn"
  targetNamespace="Examples"
  xmlns:tns="Examples">

  <message id="newInvoice" name="newInvoiceMessage" />
  <message id="payment" name="paymentMessage" />

  <process id="invoiceProcess">

    <startEvent id="messageStart" >
    	<messageEventDefinition messageRef="newInvoice" />
    </startEvent>
    ...
    <intermediateCatchEvent id="paymentEvt" >
    	<messageEventDefinition messageRef="payment" />
    </intermediateCatchEvent>
    ...
  </process>

</definitions>

<startEvent id="request" flowable:initiator="initiator" />

try {
  identityService.setAuthenticatedUserId("bono");
  runtimeService.startProcessInstanceByKey("someProcessKey");
} finally {
  identityService.setAuthenticatedUserId(null);
}

<boundaryEvent id="myBoundaryEvent" attachedToRef="theActivity">
      <XXXEventDefinition/>
</boundaryEvent>

<intermediateCatchEvent id="myIntermediateCatchEvent" >
    <XXXEventDefinition/>
</intermediateCatchEvent>

<intermediateThrowEvent id="myIntermediateThrowEvent" >
      <XXXEventDefinition/>
</intermediateThrowEvent>

<intermediateThrowEvent id="noneEvent">
  <extensionElements>
    <flowable:executionListener class="org.flowable.engine.test.bpmn.event.IntermediateNoneEventTest$MyExecutionListener" event="start" />
  </extensionElements>
</intermediateThrowEvent>

<sequenceFlow id="flow1" sourceRef="theStart" targetRef="theTask" />

<process id="executionListenersProcess">

  <extensionElements>
    <flowable:executionListener
      class="org.flowable.examples.bpmn.executionlistener.ExampleExecutionListenerOne"
      event="start" />
  </extensionElements>

  <startEvent id="theStart" />
  <sequenceFlow sourceRef="theStart" targetRef="firstTask" />

  <userTask id="firstTask" />
  <sequenceFlow sourceRef="firstTask" targetRef="secondTask">
    <extensionElements>
      <flowable:executionListener
        class="org.flowable.examples.bpmn.executionListener.ExampleExecutionListenerTwo" />
    </extensionElements>
  </sequenceFlow>

  <userTask id="secondTask" >
    <extensionElements>
      <flowable:executionListener
        expression="${myPojo.myMethod(execution.event)}"
        event="end" />
    </extensionElements>
  </userTask>
  <sequenceFlow sourceRef="secondTask" targetRef="thirdTask" />

  <userTask id="thirdTask" />
  <sequenceFlow sourceRef="thirdTask" targetRef="theEnd" />

  <endEvent id="theEnd" />

</process>

public class ExampleExecutionListenerOne implements ExecutionListener {

  public void notify(ExecutionListenerExecution execution) throws Exception {
    execution.setVariable("variableSetInExecutionListener", "firstValue");
    execution.setVariable("eventReceived", execution.getEventName());
  }
}

<flowable:executionListener expression="${myPojo.myMethod(execution.eventName)}" event="end" />

<flowable:executionListener event="start" delegateExpression="${myExecutionListenerBean}" />

<flowable:executionListener event="start"
    class="org.flowable.engine.impl.bpmn.listener.ScriptExecutionListener">

  <flowable:field name="script">
    <flowable:string>
      def bar = "BAR";  // 局部变量
      foo = "FOO"; // 将变量放入执行上下文
      execution.setVariable("var1", "test"); // 测试访问执行实例
      bar // 隐式返回值
    </flowable:string>
  </flowable:field>
  <flowable:field name="language" stringValue="groovy" />
  <flowable:field name="resultVariable" stringValue="myVar" />

</flowable:executionListener>

<userTask id="myTask" name="My Task" >
  <extensionElements>
    <flowable:taskListener event="create" class="org.flowable.MyTaskCreateListener" />
  </extensionElements>
</userTask>

public class MyTaskCreateListener implements TaskListener {

  public void notify(DelegateTask delegateTask) {
    // 这里是要实现的业务逻辑
  }
}

<flowable:taskListener event="create" expression="${myObject.callMethod(task, task.eventName)}" />

<flowable:taskListener event="create" delegateExpression="${myTaskListenerBean}" />

<flowable:taskListener event="complete" class="org.flowable.engine.impl.bpmn.listener.ScriptTaskListener" >
  <flowable:field name="script">
    <flowable:string>
      def bar = "BAR";  // 局部变量
      foo = "FOO"; // 将变量放入执行上下文
      task.setOwner("kermit"); // 测试访问任务实例
      bar // 隐式返回值
    </flowable:string>
  </flowable:field>
  <flowable:field name="language" stringValue="groovy" />
  <flowable:field name="resultVariable" stringValue="myVar" />
</flowable:taskListener>

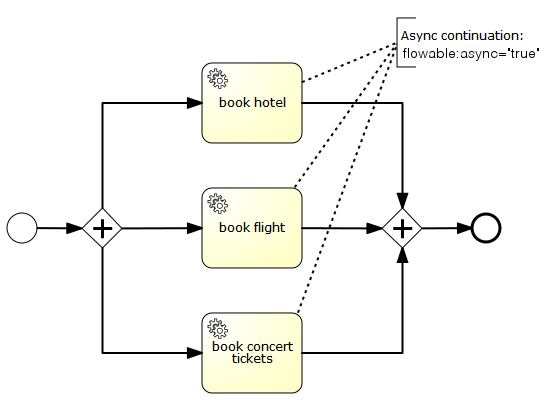

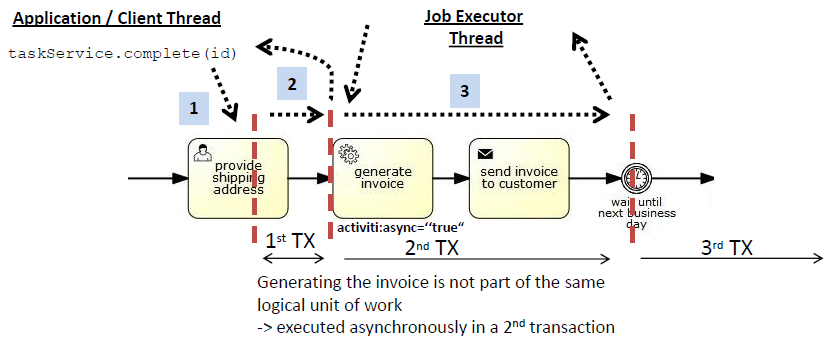

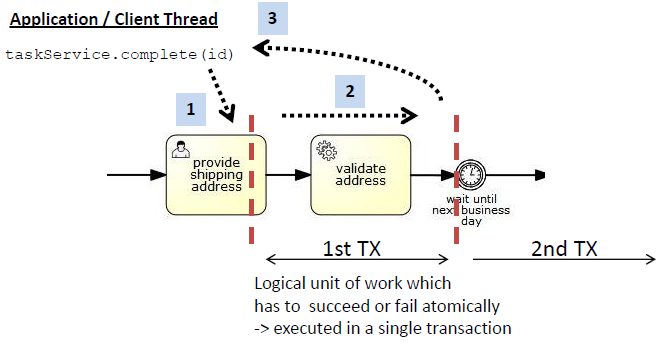

<serviceTask id="service1" name="Generate Invoice"
    flowable:class="my.custom.Delegate"
    flowable:async="true" />

<serviceTask id="failingServiceTask" flowable:async="true"
    flowable:class="org.flowable.engine.test.jobexecutor.RetryFailingDelegate">

    <extensionElements>
        <flowable:failedJobRetryTimeCycle>R5/PT7M</flowable:failedJobRetryTimeCycle>
    </extensionElements>
</serviceTask>
